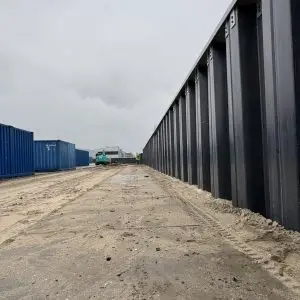

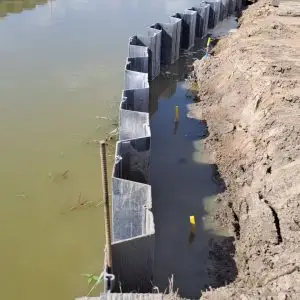

Fiberglass reinforced sheet piles are an efficient and environmentally friendly alternative to steel sheet piles. It is a strong and highly durable composite sheet pile profile that can withstand extreme conditions such as salt, acid and high temperatures.
A suitable design made and delivered for every situation- Innovative and specialized in anchoring techniques
- Safety and quality are paramount at JLD. We are VCA** and ISO 9001 certified!
Specifications Z-profile - FRP
| Dam wall specifications | W (mm) | H (mm) | T (mm) | Resistance moment (cm3/m) | Inertia moment (kNm/m) | Extreme moment (kNm/m) | EI MAX stiffness (kNm2/m1) | EI initial stiffness (kNm2/m1) | Weight per m1 (kg/m1) | Weight per m2 (kg/m2) | MKI (MK/m2) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRP 7.1 | Z | GC7.1 | 457 | 203,2 | 6,36 | 696 | 7.072 | 130 | 2.773 | 2.263 | 8,9 | 19,5 | |
| FRP 15.7 | Z | GC15.7 | 508 | 254 | 8,65 | 1.219 | 15.481 | 306,1 | 6.070 | 5.418 | 14,4 | 28,4 | |
| FRP 36,7 | Z | GC36.7 | 610 | 356 | 10,9 | 1.994 | 35.494 | 706,7 | 13.918 | 13.843 | 21,4 | 35,1 | |
| FRP 67.9 | Z | GC67.9 | 762 | 431,8 | 13,7 | 3130 | 67.580 | 723 | 20.557 | 26.356 | 32 | 42 |
Corner pieces
GC-45-90-S
GC-45-90-L
