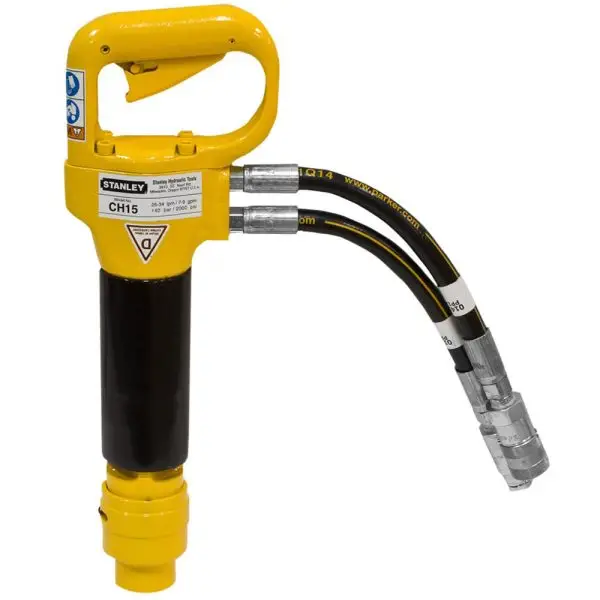

The ergonomic "D" handle and short 17-inch full-length length,
makes it easy to use in tight and hard-to-reach
locations. The floating trigger design requires minimal pressure over any part of the surface to connect to the tool. The trigger is protected in the handle to prevent activation with unintended operation of the tool. The CH15 has a sturdy bit holder and accepts tools with a .580 hex shank and oval collar pieces. High visibility yellow painted.
A suitable design made and delivered for every situation- Innovative and specialized in anchoring techniques
- Safety and quality are paramount at JLD. We are VCA** and ISO 9001 certified!
- Ergonomic "D" handle with inside puller
- Stainless steel spool and fasteners
- Tool body is rubber coated
diver comfort
- Floating trigger design requires
minimum pressure
- Uses standard .580 hex shank, oval collar
tool bits
- High power-to-weight ratio
- Works in any position
- CE certified
| Steel Capacity | .580 Hex Shank, Oval Collar Tool Bits |
| Handle Type | "D" Handle, with Inside Trigger |
| Circuit Type | Open Center |
| Flow Range | 7-9 gpm / 26-34 lpm |
| Optimum Flow | 8 gpm / 30 lpm |
| Working Pressure | 1000-2000 psi / 70-140 bar |
| Full Relief Setting | 2250 psi / 155 bar |
| Weight (less tool bit) | 16 lbs / 7.25 kg |
| Length | 17" / 43 cm |
| Hydraulic Ports | -6 SAE O-ring |
| Couplers | Yes |
| Hose Whips | Yes (3⁄8" NPT Male thread) |
