Strong and Durable Protection
Fiberglass reinforced sheet piles are an efficient and environmentally friendly alternative to steel sheet piles. It is a strong and highly durable composite sheet pile profile that can withstand extreme conditions such as salt, acid and high temperatures.
Advantages of fiberglass reinforced sheet piles (FRP)
Corrosion-resistant- Very favorable MKI value
- Easier to handle
- Cost saving (LCA), within your engineering design and final realization.
Corrosion resistance
Fiberglass composites naturally offer protection against corrosion, resulting in durable sheet piles that hold up even in challenging environments. In addition, these sections exhibit minimal expansion and contraction response to temperature changes, contributing to one lasting dimensional stability. A sheet pile design can be developed by a specialist that requires the application of FRP sheet piles with minimal reduction (aging surcharge). A corrosion allowance based on the end-of-life strength is not necessary when using FRP sheet piles.
High strength-to-weight ratio
Fiberglass composites offer an excellent strength-to-weight ratio, making them strong yet lightweight. A reduction in many logistical points that are also directly reflected in a favorable MKI value.

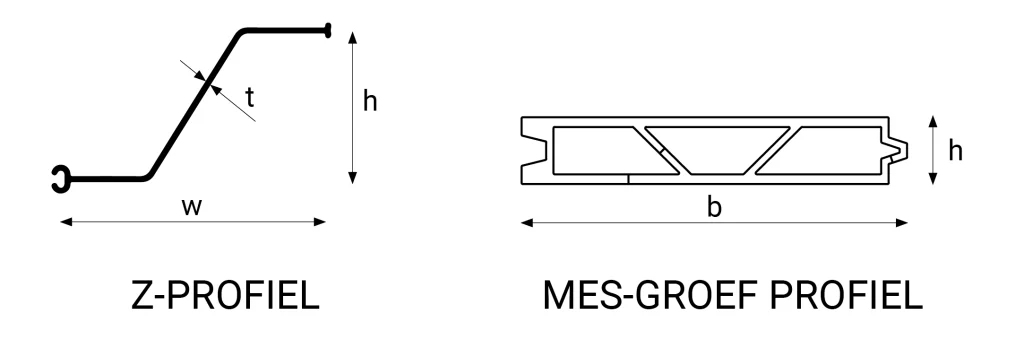

| Type | W (mm) | H (mm) | Section area (cm2/m') | Resistance moment (cm3 / m) | Moment of inertia (cm4 / m) | Flange width (mm) | Web length (mm) | Thickness (mm) | E-modulus (MPa) | Tensile and compression strength (MPa) | Buckling stress flange (MPa) | Shear strength (MPa) | Kink-tension web | EI MAX stiffness (kNm2/m') | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | H | A | Well | I | b | bw | t | E | fc,Rk | fc,stab,Rk | fs,Rk | fs,stab,Rk | EIinitial | ||
| JLD-FRP | JLD/GC-7.1 | 457 | 203,2 | 101,7 | 696 | 7.072 | 148 | 220 | 6,35 | 32000 | 480 | 147 | 35 | 64 | 2263 |
| JLD-FRP | JLD/GC-15.7 | 508 | 254,0 | 142,2 | 1.219 | 15.481 | 165 | 250 | 8,65 | 35000 | 480 | 240 | 35 | 101 | 5418 |
| JLD-FRP | JLD/GC-36.7 | 610 | 356,0 | 173,5 | 1.994 | 35.494 | 210 | 10,9 | 13843 | ||||||
| JLD-FRP | JLD/GC-67.9 | 762 | 431,8 | 218,7 | 3130 | 67.580 | 280 | 13,7 | 26356 |
* Slide the blue bar for more values.
Complete sheet piling system
- The required optional accessories
- 4 different FRP Plastic sheet piling options
- Team JLD provides technical advice and design support
FRP accessories
-
Corner pieces & deck gaps.
-
Registration shelves
JLD tool
Need a quote for your situation? Get in touch with us!
Advice and quote within 24 hours.
