The new Marinetek FN Boat Booms have been designed according to the Australian standards, which are most used in the marina industry. The booms are light, inexpensive and designed for easy and safe mooring of small boats in sheltered marinas. The frame is made of hot dip galvanised and welded steel. The plastic floats are filled and rotation molded and come with two different designs. The Booms have hinged fixings as standard and a wooden deck as an option.
- Voor elke situatie een passend ontwerp gemaakt en geleverd
- Innovatief en gespecialiseerd in verankeringstechnieken
- Veiligheid en kwaliteit staan bij JLD voorop. Wij zijn VCA**- en ISO 9001- gecertificeerd!
STANDARD MODELS | FN450 | FN500 | FN600 | FN700 | FN800 | FN500K | FN600K | FN700K | FN800K |
Length (m) | 4,5 | 5,0 | 6,0 | 7,0 | 8,0 | 5,0 | 6,0 | 7,0 | 8,0 |
Width (m) | 0,35 | 0,35 | 0,35 | 0,35 | 0,35 | 0,4 | 0,4 | 0,4 | 0,4 |
Total capacity (kg) | 45/75/130 | 45/75/130 | 75/130 | 90/130 | 90/130 | 225/260 | 225/260 | 300/390 | 300/390 |
Joint bolt | 2xM20 | 2xM20 | 2xM20 | 2xM20 | 2xM20 | 2xM20 | 2xM20 | 2xM20 | 2xM20 |
Booms of special lengths and widths are also available. Standard booms suit best for pontoon freeboard up to 0,56 m.
Marinetek operates a policy of continuous development and reserves the right to change specifications without notice.
- Frame: Hot rolled steel, galvanised to EN ISO 1461
- Float: Rotation moulded polyethylene floats: 45, 75 and 130 kg
- Decking: Treated pine (standard) or wood plastic composite
- Fittings: Hot dip galvanised steel

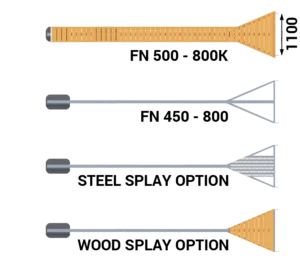

- FN Boom optional accessories: – Wood Splay (treated pine) – Steel Splay (HDG Steel)
