Kunststof- en glasvezel versterkte damwanden.
De specificaties voor kunststof- en glasvezel-damwanden, waar techniek en duurzaamheid samenkomen om uiteenlopende behoeften in waterbouwkundige projecten te vervullen.
Verschillende types
Klik op het type damwand en download het productblad voor meer informatie.

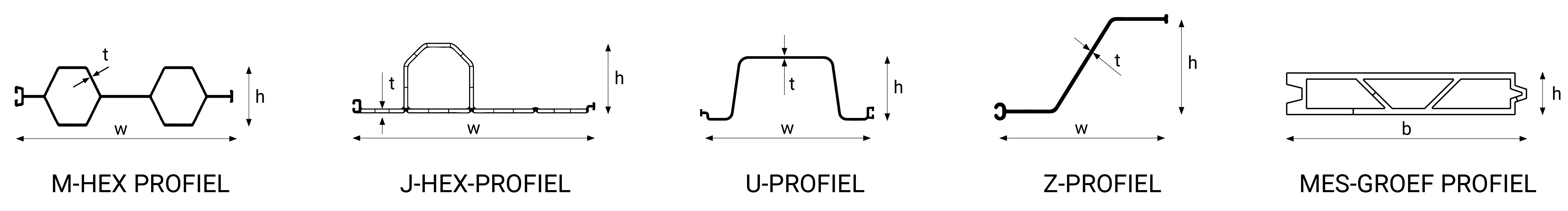

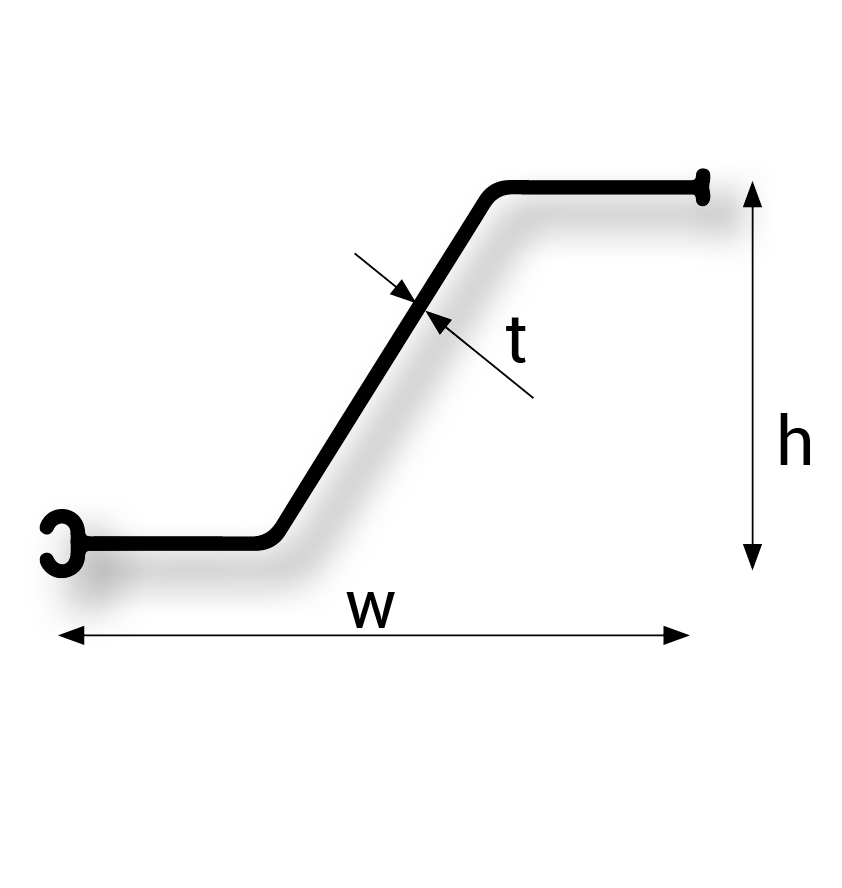

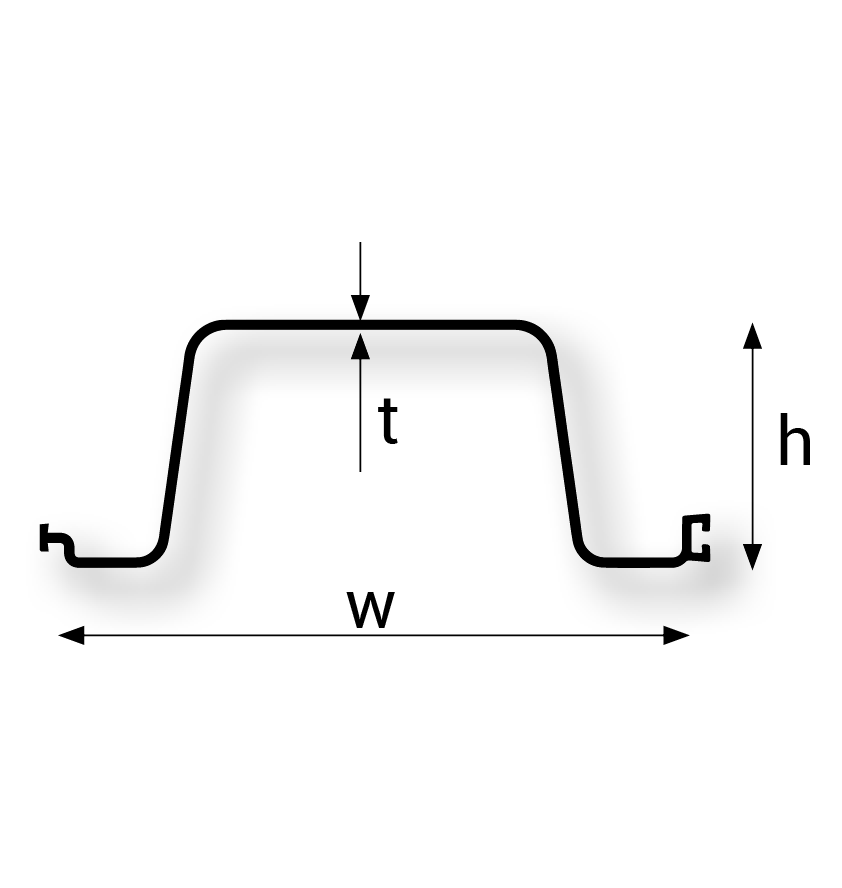

FRP damwanden – specificaties
Damwandspecificaties | W (mm) | H (mm) | T (mm) | Weerstands- moment (cm3/m) | Traagheids- moment (cm4/m) | Uiterst- moment (kNm/m) | EI MAX stijfheid (kNm2/m1) | EI initial stijfheid (kNm2/m1) | Gewicht per m1 (kg/m1) | gewicht per m2 (kg/m2) | MKI (MK/m2) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GFRP 7.1 | Z | GC7.1 | 457 | 203,2 | 6,35 | 696 | 7.072 | 130 | 2.773 | 2.263 | 8,9 | 19,5 | |
GFRP 15.7 | Z | GC15.7 | 508 | 254 | 8,65 | 1.219 | 15.481 | 306,1 | 6.070 | 5.418 | 14,4 | 28,4 | |
GFRP 36.7 | Z | GC36.7 | 610 | 356 | 10,9 | 1.994 | 35.494 | 706,7 | 13.918 | 13.843 | 21,4 | 35,1 | |
GFRP 67.9 | Z | GC67.9 | 762 | 431,8 | 13,7 | 3130 | 67.580 | 723 | 20.557 | 26.356 | 32 | 42 |
Kunststof damwanden – specificaties
Damwandspecificaties | W (mm) | H (mm) | T (mm) | Weerstands- moment (cm3/m) | Traagheids- moment (cm4/m) | Uiterst- moment (kNm/m) | EI MAX stijfheid (kNm2/m1) | Gewicht per m1 (kg/m1) | gewicht per m2 (kg/m2) | MKI (MK/m2) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
VINYL M-HEX | ∞ | M-HEX | 500 | 120 | 5 | 245 | 1470 | 10,8 | 38,2 | 8 | 16 | 2,15 |
VINYL 300/5,5 | Z | 300/5,5 | 300 | 115 | 5,5 | 320 | 1.842 | 14,1 | 47,9 | 4,3 | 14,3 | 2,18 |
VINYL 460/5,5 | U | 460/5,5 | 460 | 130 | 5,5 | 360 | 2.527 | 15,8 | 65,7 | 6,2 | 13,4 | 2,04 |
VINYL 610/6,4 | U | 610/6,4 | 606 | 180 | 6,4 | 613 | 5.514 | 27 | 143,4 | 9 | 14,9 | 2,27 |
VINYL 610/7,2 | U | 610/7,2 | 606 | 200 | 7,2 | 774 | 7.743 | 34,1 | 201,3 | 9,2 | 15,2 | 3,7 |
VINYL 610/6 | U | 610/6 | 606 | 230 | 6 | 775 | 8.915 | 34,1 | 231,8 | 9,9 | 16,4 | 1,95 |
VINYL 610/9 | U | 610/9 | 606 | 230 | 9 | 1.109 | 12.758 | 48,8 | 331,7 | 13,9 | 23 | 3,44 |
VINYL 580/7 | Z | 580/7 | 290 | 240 | 7 | 1.183 | 15.056 | 52,1 | 391,4 | 6,9 | 24 | 3,59 |
VINYL 580/9 | Z | 580/9 | 290 | 240 | 9 | 1.462 | 18.739 | 64,3 | 487,2 | 8,7 | 30,1 | 4,52 |
VINYL 580/11 | Z | 580/11 | 290 | 240 | 11 | 1.711 | 21.851 | 75,3 | 568,1 | 10,4 | 36 | 5,4 |
VINYL 458/12 | Z | 458/12 | 458 | 254 | 12 | 1.717 | 22.937 | 75,5 | 596,4 | 14,2 | 31,2 | 4,67 |
VINYL458/10.4 | Z | 458/10,4 | 458/10,4 | 254 | 10,4 | 1.542 | 20.718 | 67,8 | 538,7 | 12,6 | 28 | 4,2 |
VINYL Superlock | Z | Superlock | 350 | 250 | 9 | 1.685 | 21.203 | 106,2 | 912 | 10,7 | 30,6 | 14,24 |
Hoekstukken – Vinyl
-
C-300
- Vinyl 270/5/5
- Vinyl 300/5/5
-
C-45
- Vinyl 458/12/0
- Vinyl 458/10.4
- Vinyl 610.6
- Vinyl 610/9
-
C580/610
- Vinyl 460/5.5
- Vinyl 580/7.1
- Vinyl 580/9.0
- Vinyl 580/11.0
-
C85-135
- Vinyl 610/6.4
- Vinyl 610/7.2
- M-Hex
- J-Hex
