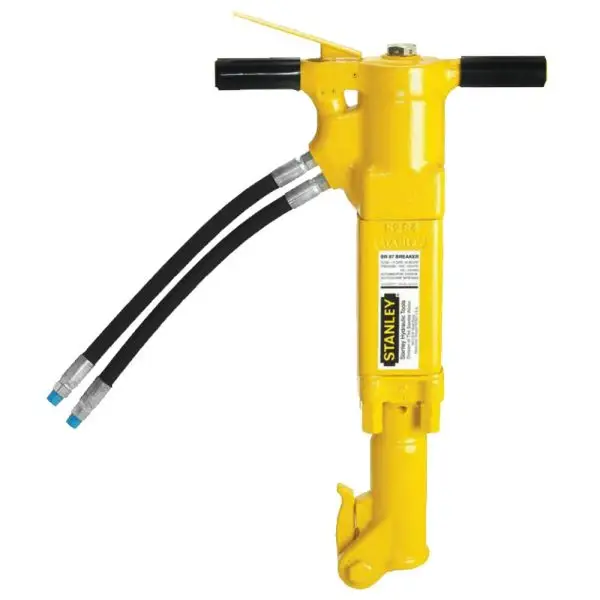

The BR67 is a medium crushing hammer from Stanley Hydraulic Tool Assembly
of underwater pavement crushers. The BR67 belongs to the 70 lbs class of breakers and is used for medium concrete and rock crushing, coral removal and rod penetration. The spring on/off valve controls speed and allows for easier initial tool placement. Standard 11⁄8″ x 6″ hexagonal drill head and latch holder. High visibility yellow painted.
A suitable design made and delivered for every situation- Innovative and specialized in anchoring techniques
- Safety and quality are paramount at JLD. We are VCA** and ISO 9001 certified!
- T-handle with large on/off trigger for
precise control
- Stainless steel coil and fasteners
- Trouble-free diaphragm accumulator
Provides additional blowing energy and
reduces recoil
- On/off valve with spring makes it easy
initial placement of the tool bit
- Uses standard 11⁄8″ x 6″ hex shank
tool bits
- Design with four tie rods for durability
- Works in any position
- Modular design for ease of maintenance
- Locking holder
| Performance | 1300 bpm @ 8 gpm |
| Steel Capacity | 11⁄8" x 6" Hex |
| Handle Type | T-Handle |
| Circuit Type | Open Center |
| Flow Range | 7-9 gpm / 26-34 lpm |
| Optimum Flow | 8 gpm / 30 lpm |
| Working Pressure | 1500-2000 psi / 105-140 bar |
| Full Relief Setting | 2250 psi / 155 bar |
| Weight (less tool bit) | 73 lbs / 33 kg |
| Length | 29" / 73.6 cm |
| Width (at handles) | 16" / 41 cm |
| Hydraulic Ports | -8 SAE O-ring |
| Couplers | No (See Accessories) |
| Hose Whips | Yes (3⁄8" NPT Male thread) |
