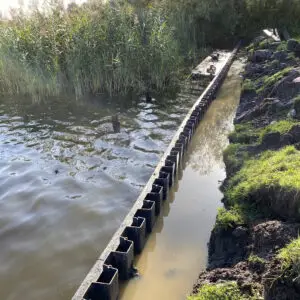

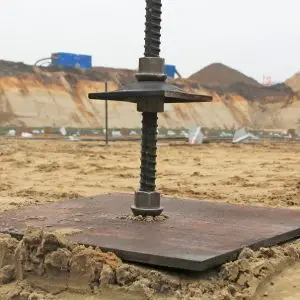

The JLD Anchor is a mechanical ground anchor with extensive constructive application possibilities for ground anchoring in the civil, utility and maritime industry. Compared to other systems, the JLD Anchor offers the advantages that, thanks to the ingenious mechanism of application and tilting, anchor force is achieved "without ground disturbance" and can be loaded immediately.
Read more
A suitable design made and delivered for every situation- Innovative and specialized in anchoring techniques
- Safety and quality are paramount at JLD. We are VCA** and ISO 9001 certified!
Product Data
| Type | JLD 1.0 | [-] |
|---|---|---|
| Width | 31 | [mm] |
| Length | 121 | [mm] |
| Height | 48 | [mm] |
| Surface | 3.097 | [mm2] |
| Break strength | 20 | [kN] |
| Liquid strength | 16 | [kN] |
| Finish | Treated | |
| Test | test | testlink test |
| Type | Material | |
|---|---|---|
| M10 | 31 |  |

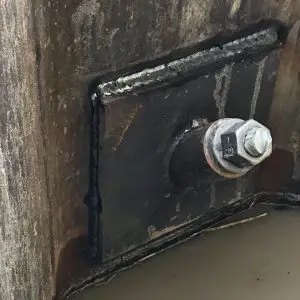

Accessories

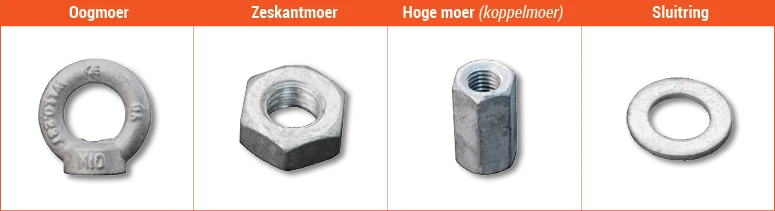

Fasteners - type M10 - ø 10MM
Installation

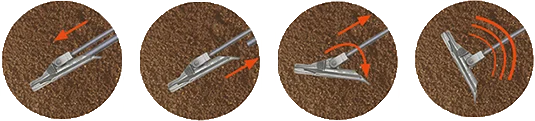

1. Insert the tie rod and connecting rod into the anchor and vibrate the anchor to the proper depth.
2. Remove the drive rod.
3. Tilt the anchor by withdrawing the tie rod.
4. Bring the anchor to the desired preload.
